Holt.Blue

Cryptography is an ancient and modern practice.



















































Modular Arithmetic

Modular arithmetic is remainder arithmetic.

Two numbers are "equal" if they have the same remainder when dividing by a fixed number called the modulus.

For example, $19$ and $10$ have the same remainder when we divide both by $9.$

We may write the above as $19 \equiv 10 \equiv 1 \,\,(\mbox{mod } 9).$















































Modular Arithmetic

If you can answer the following question, then you are already familiar with one example of modular arithmetic:



























Modular Arithmetic



We just performed arithmetic modulo $12$: $$11+4 \equiv 15 \equiv 3 \,\,(\mbox{mod } 12).$$























Modular Arithmetic: Examples.

$7+9 \equiv \,\,\,\,\,\,\,\,(\mbox{mod } 12)$	$7-9 \equiv \,\,\,\,\,\,\,\,(\mbox{mod } 12)$
$3+8 \equiv \,\,\,\,\,\,\,\,(\mbox{mod } 9)$	$3-8 \equiv \,\,\,\,\,\,\,\,(\mbox{mod } 9)$

Big Fact: Modular arithmetic allows us to perform mathematical operations on the alphabet!

For example, $$ \begin{array}{c} \mbox{H} = 7 \rightarrow \mbox{H}+\mbox{T}=7+19 \equiv 0 = \mbox{A}\\ \end{array} $$























Big Fact: Modular arithmetic allows us to perform mathematical operations on the alphabet!

$$ \begin{array}{lccccc} \mbox{H} = 7 &\rightarrow &\mbox{H}+\mbox{T}&=7+19 &\equiv 0 &= \mbox{A}\\ \mbox{E} = 4 &\rightarrow& \mbox{E}+\mbox{T}&=4+19 &\equiv 23 &= \mbox{X}\\ \mbox{L} = 11 &\rightarrow& \mbox{L}+\mbox{T}&=11+19 &\equiv 4 &= \mbox{E}\\ \mbox{P} = 15 &\rightarrow &\mbox{P}+\mbox{T}&=15+19 &\equiv 8 &= \mbox{I}\\ \end{array} $$





















The Caesar Cipher

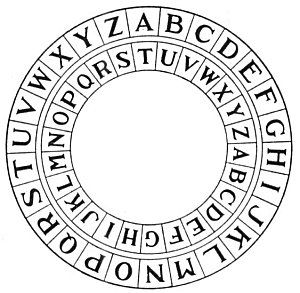

To encrypt a letter $p$, shift it to the left or right by some number of spaces $e$ using our decoder pin: Or simply use modular arithmetic: $$p \rightarrow p+e \equiv c \,\,(\mbox{mod } 26)$$ The value $e$ is our encryption key, and for the above $e=\mbox{T}=19.$ This is what gave us the encrypted message $$\mbox{HELP}\rightarrow \mbox{AXEI}.$$



























Big Question

Suppose we received the encrypted message $\mbox{AXEI}.$

How would we decrypt it?























Big Answer

Simply use modular arithmetic; to decrypt, simply subtract $\mbox{T}=19.$

For example, $$\mbox{A} = 0 \rightarrow \mbox{A}-\mbox{T}=0-19 \equiv 26-19 \equiv 7 = \mbox{H}.$$






















The Caesar Cipher

$$ \begin{array}{llllll} \mbox{A} = 0 &\rightarrow& \mbox{A}-\mbox{T}&=0-19 &\equiv 7 &= \mbox{H}\\ \mbox{X} = 23 &\rightarrow& \mbox{X}-\mbox{T}&=23-19 &\equiv 4 &= \mbox{E}\\ \mbox{E} = 4 &\rightarrow& \mbox{E}-\mbox{T}&=4-19 &\equiv 11 &= \mbox{L}\\ \mbox{I} = 8 &\rightarrow& \mbox{I}-\mbox{T}&=8-19 &\equiv 15 &= \mbox{P}\\ \end{array} $$





















The Caesar Cipher

$$ \begin{array}{cccc} \mbox{A} & \mbox{X} & \mbox{E} & \mbox{I} \\ 0 & 23 & 4 & 8\\ 7 & 4 & 11 & 15\\ \mbox{H} & \mbox{E} & \mbox{L} & \mbox{P} \end{array} $$





















Your Turn!

It's time to get into groups!





















Mission #$1:$

The following is Part $1$ of a super-secret message encrypted by using $\mbox{K}$ as our shift letter. $$\mbox{ZBSJOCKBORSNNOXSXDROBYYW}$$





















Big Problem

Although your English teacher might not be able to make heads or tails of your encrypted notes, the Caesar cipher a huge weakness.

In your groups, discuss what you think that weakness is?





















Frequency Analysis























Mission #$2:$ Break the Caesar Cipher and learn more about the prizes.

The following is Part $2$ of a super-secret message encrypted by an UNKNOWN shift letter. $$\mbox{AOLWYPGLZHYLZTHSSHUKZDLLA}$$





















Historical Fact

Even though the Caesar Cipher is relatively easy to crack, Julius Caesar really did use it. According to the Roman historian Suetonius, he often used $\mbox{D}$ as the shift letter.























Another Scheme: Vigenère Ciphers

Vigenère Ciphers use a key word rather than a key letter.

Example: With key word $(\mbox{S},\mbox{O},\mbox{O},\mbox{N})=(18,14,14,13),$ $$ \left[ \begin{array}{c} \mbox{H} \\ \mbox{E} \\ \mbox{L} \\ \mbox{P}\\ \mbox{M} \\ \mbox{E} \\ \mbox{O}\\ \mbox{U} \\ \mbox{T} \end{array} \right] = \left[ \begin{array}{c} 7 \\ 4 \\ 11 \\ 15 \\ 12 \\ 4 \\ 14\\ 20\\ 19 \end{array} \right] \rightarrow \left[ \begin{array}{c} \mbox{H}+\mbox{S} \\ \mbox{E}+\mbox{O} \\ \mbox{L}+\mbox{O}\\ \mbox{P}+\mbox{N}\\ \mbox{M}+\mbox{S}\\ \mbox{E}+\mbox{O}\\ \mbox{O}+\mbox{O}\\ \mbox{U}+\mbox{N}\\ \mbox{T}+\mbox{S}\\ \end{array} \right] = \left[ \begin{array}{c} 7+18 \\ 4+14 \\ 11+14\\ 15+13\\ 12+18\\ 4+14\\ 14+14\\ 20+13\\ 19+18\\ \end{array} \right] \equiv \left[ \begin{array}{c} 25 \\ 18\\ 25\\ 2\\ 4\\ 18\\ 2\\ 7\\ 11 \end{array} \right] = \left[ \begin{array}{c} \mbox{Z} \\ \mbox{S}\\ \mbox{Z}\\ \mbox{C}\\ \mbox{E} \\ \mbox{S}\\ \mbox{C}\\ \mbox{H}\\ \mbox{L} \end{array} \right] \,\,(\mbox{mod } 26) $$























Mission #$3:$ Claim your prize!

The next slide contains an encrypted message which will reveal the location(s) of the prizes.

Are you ready?























Mission #$3:$ Claim your prize!

The following was encrypted by using a Vigenère Cipher with the key word $\mbox{PRIZE}.$ $$\mbox{QRKJTPTSTRSVZVLXKMASPIL}$$





















While you enjoy your prizes, let's talk about...















































Fact

The Caesar, Vigenère, and even the ENIGMA ciphers (used by Germany in WWII) have a particular drawback which makes them unsuitable for publicly exchanging information in our modern age...























...both the sender and receiver of a message must have the encryption/decryption key.

All of the encryption/decryption schemes we have considered so far are examples of private-key cryptosystems.

Observation: knowing how a sender encrypted a message tells us how to decrypt it.























Big Question

Is there an encryption scheme where knowing how a message was encrypted doesn't tell us how to decrypt it?























The Situash: Bob would like to receive a secret message from Alice.

Moreover, Bob would like to be able to make the method of encryption public so that anyone could send him an encrypted message, but only Bob can decrypt the message.

Question: Is this even possible?























RSA System Basics

Step 1: Bob finds two large primes $p$ and $q$ and computes their product $n=pq.$

Step 2: Bob then finds two numbers $e$ and $d$ such that $${ed} \equiv 1 \,\,(\mbox{mod } (p-1)(q-1)).$$ Step 3: Bob publishes the key $(e,n)$ where $e$ is an encryption exponent and $n.$

Step 4: Alice encrypts the message $a$ by computing $a^e \,\,(\mbox{mod } n)$, and sends this to Bob.

Step 5: Bob takes the remainder of $a^{e}$ upon division by $n$ and raises it to the power of his decryption exponent $d$ so that $$(a^e)^d \equiv a^{ed} \equiv a \,\,(\mbox{mod } n).$$

























Fermat's Little Theorem

If a prime $p$ does not divide $a$, then $$a^{p-1} \equiv 1 \,\,(\mbox{mod } p).$$

























Example

Step 1: Bob chooses two "large" primes $p=53$ and $q=59$ and computes $n=pq=3127.$

Step 2: Bob then finds two numbers $e$ and $d$ such that $ed \equiv 1 \,\,(\mbox{mod } 3016).$ For this example, $e=7$ and $d=431$ will do the trick.

Step 3: Bob publishes the encryption key $(7,3127).$

Step 4: Alice encrypts the message $\mbox{HELP}$ in blocks of 2: $0704^7 \equiv 254 \,\,(\mbox{mod } 3127)$ and $1115^7 \equiv 1612 \,\,(\mbox{mod } 3127)$ and sends the message $0254\,\,1612$ to Bob.

Step 5: Bob uses his decrypting exponent $431$ to decode the message: $254^{431} \equiv 704 \,\,(\mbox{mod } 3127)$ and $1612^{431} \equiv 1115 \,\,(\mbox{mod } 3127)$ and recovers the message $0704 \,\, 1612,$ i.e., $\mbox{HELP}.$

























Huge Question: What makes this scheme secure against an eavesdropper?



























The security of RSA rests on the following fact:

Multiplying two numbers, even huge numbers, is child's play to a computer, but unmultiplying two numbers (i.e., factoring) can be intractable.

For example, factor this product of two large primes $p$ and $q$: $$\scriptsize{n=1522605027922533360535618378132637429718068114961380688657908494580122963258952897654000350692006139}$$ The eavesdropper knows $e$ and $n,$ but they must also know primes $p$ and $q$ in order to find the decrypting exponent $d$: $$ed \equiv 1 \,\,(\mbox{mod } (p-1)(q-1)).$$ Good luck finding $p$ and $q!$























In Case You're Curious:

$$\scriptsize{p \times q =37975227936943673922808872755445627854565536638199 \times 40094690950920881030683735292761468389214899724061}$$



























Public-Key Cryptography Makes Modern Life Possible.





























Olde Theorems, Modern Applications

Fermat's Little Theorem is over $350$ years old.

At the time Fermat stated his little theorem (in $1640$), he, let alone anyone else, imagined that it could ever be applied in a truly useful way.

Such cases stand as a testament that we never know when an idea will turn out to be useful.
